MECHANICAL SERIES

PORTABLE

DF20A / DF15A / DF9.9B

DF20A/DF15A/DF9.9B

Light, compact and powerful, our portable outboards are always ready for action.

DF20AS / DF20AL
  • Manufacturer’s Suggested Retail Price for single engine (Tiller handle version) with standard accessories.
Picture of boat using DF20A/DF15A/DF9.9B Picture of boat using DF20A/DF15A/DF9.9B

Fuel Efficiency

The DF20A, 15A and 9.9B hold claim to being the world's first battery-less electronic fuel injection four-strokes in each of their power classes. Using all-new fuel injection system components designed smaller and lighter than those found in any previous system, Suzuki engineers succeeded in creating the lightest four-stroke in the 14.7kW (20PS)/11.0kW (15PS) class. And adding Suzuki's proven Lean Burn Control technology to their design, these outboards deliver remarkable fuel economy and reduced emissions throughout their operating range.

Lean Burn Control System

Suzuki four strokes are rightly famous for their fuel efficiency and technology that lets you go further, for less.

Power Tilt Models Available

In addition to the DF20A/15A/9.9B, Suzuki's portable lineup also includes four power tilt models which are the DF20AT and 9.9BT remote control models, and the DF20ATH and 15ATH tiller handle models.

Picture of Power Tilt Models Available

Cleaner, More Efficient Operation

Suzuki utilizes a number of its advanced technologies to deliver cleaner, more efficient operation that conforms to the Recreational Craft Directive (RCD) – Directive 2003/44EC of the European Parliament and of the Council, and has received three-star ratings from the California Air Resources Board (CARB).

RCD EMISSIONS STANDARDS / ULTRA LOW EMISSION
FUEL EFFICIENT
  • LEAN BURN
  • BATTERY-LESS FUEL INJECTION

The World's First 14.7kW (20PS) / 11.0kW (15PS) / 7.3kW (9.9PS) Outboards designed with Lean Burn and Battery-less Fuel Injection

Superior Fuel Economy – Suzuki's Lean Burn Control System

First introduced on our DF90A/80A/70A, the Suzuki Lean Burn system is an intelligent system that monitors engine performance and operating conditions to predict fuel needs and deliver a leaner fuel mixture to the engine. The system delivers remarkable improvements in fuel economy over the engine's entire operating range. This system is found on 14 Suzuki models from the DF9.9B up to the flagship DF300A, providing boaters with top-level fuel economy at all operating speeds.

Diagram of Superior Fuel Economy – Suzuki's Lean Burn Control System
Data used in the graphs were obtained through "In-House Suzuki Testing" under uniformed conditions. Results will vary depending upon operating conditions (boat design, size, weight, weather, etc.)
  • in comparison with the original DF90

New Generation Fuel Injection System

These are the first outboards in their respective classes to offer fuel injection, and the DF20A/15A/9.9B engineering team did an incredible job designing the outboard without adding unneeded bulk or weight. All new components, including the inline high-pressure fuel pump, fuel cooler, vapor separator, fuel injectors, and a new throttle body, were designed as compact and lightweight as possible. The entire system was designed to fit in as little space as possible. The system operates battery-less, which is another industry first in the 14.7kW (20PS), 11.0kW (15PS) and 7.3kW (9.9PS) class. While fuel injection systems normally require battery power to deliver quicker starts, smoother running performance, and more acceleration in all conditions, Suzuki's Battery-Less system does this all without the need of battery power.

Picture of New Generation Fuel Injection System

Light Weight & Compact

The DF20A/15A's lightest in class title is the result of a complete redesign of parts and components, striving to create the smallest and lightest parts possible without compromising integrity. Succeeding in this, our engineers have delivered an outboard that even when configured with a power tilt system still weighs less than the any other outboard in the 4-stroke 14.7kW (20PS) /11.0kW (15PS) class.

Diagram of Light Weight & Compact

Easy to Use

Along with better fuel economy, fuel injection also offers easier and more dependable starts in nearly any operating condition or environment. While our carburetor models are some of the finest outboards available, fuel injection gives these outboards even smoother operation with reduced engine vibration.

Easy Start Recoil Starter

These outboards are equipped with starters specially designed with very light recoil loads. Combining the easy to pull starter with fuel injection makes starts exceptionally easy for almost everyone.

Picture of Easy Start Recoil Starter

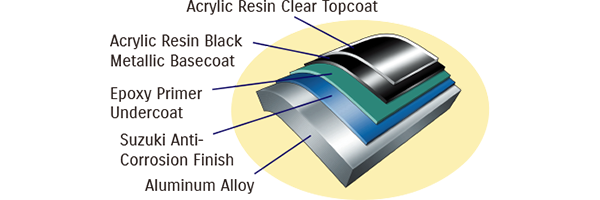

Suzuki's Anti Corrosion System

Suzuki protects the outboard's exterior from harmful corrosion with its own specially formulated anti-corrosion finish. Applying the finish directly to the outboard's aluminum surface, allows maximum bonding of the finish to the surface to increase durability and help protect parts that are constantly exposed to saltwater.

Diagram of Suzuki's Anti Corrosion System

Power Tilt Models Available

A number of portable models are now available with a power tilt system that provides smooth tilting of the outboard. The system offers greater convenience and improved easier operation. (DF20AT/9.9BT, DF20ATH/15ATH)

Picture of Power Tilt Models Available
MODELDF20A
RECOMMENDED TRANSOM HEIGHT mmS: 381, L: 508S: 381, L: 508
STARTING SYSTEMElectricManual
WEIGHT kg *1S: 48, L: 49S: 44, L: 45
ENGINE TYPEOHC
FUEL DELIVERY SYSTEMBattery-Less Multi-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS2
PISTON DISPLACEMENT cm3327
BORE ×STROKE mm60.4x57
MAXIMUM OUTPUT kW14.7
FULL THROTTLE OPERATING RANGE rpm5,300-6,300
STEERINGTiller
OIL PAN CAPACITY Lit.1.0
FUEL TANK CAPACITY Lit.12
IGNITION SYSTEMDigital CDI
ALTERNATOR12V 12A12V 6A
ENGINE MOUNTINGShear Mount
TRIM METHODManual Trim and Tilt
GEAR RATIO2.08:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
PROPELLER SELECTION (Pitch)*2
All propellers are the 3-blade type
7"-12"
MODELDF15A
RECOMMENDED TRANSOM HEIGHT mmS: 381, L: 508S: 381, L: 508
STARTING SYSTEMElectricManual
WEIGHT kg *1S: 48, L: 49S: 44, L: 45
ENGINE TYPEOHC
FUEL DELIVERY SYSTEMBattery-Less Multi-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS2
PISTON DISPLACEMENT cm3327
BORE ×STROKE mm60.4x57
MAXIMUM OUTPUT kW11.0
FULL THROTTLE OPERATING RANGE rpm5,000-6,000
STEERINGTiller
OIL PAN CAPACITY Lit.1.0
FUEL TANK CAPACITY Lit.12
IGNITION SYSTEMDigital CDI
ALTERNATOR12V 12A12V 6A
ENGINE MOUNTINGShear Mount
TRIM METHODManual Trim and Tilt
GEAR RATIO2.08:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
PROPELLER SELECTION (Pitch)*2
All propellers are the 3-blade type
7"-12"
MODELDF9.9B
RECOMMENDED TRANSOM HEIGHT mmS: 381, L: 508
STARTING SYSTEMManual
WEIGHT kg *1S: 44, L: 45
ENGINE TYPEOHC
FUEL DELIVERY SYSTEMBattery-Less Multi-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS2
PISTON DISPLACEMENT cm3327
BORE ×STROKE mm60.4x57
MAXIMUM OUTPUT kW7.3
FULL THROTTLE OPERATING RANGE rpm4,700-5,700
STEERINGTiller
OIL PAN CAPACITY Lit.1
FUEL TANK CAPACITY Lit.12
IGNITION SYSTEMDigital CDI
ALTERNATOR12V 6A
ENGINE MOUNTINGShear Mount
TRIM METHODManual Trim and Tilt
GEAR RATIO2.08:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
PROPELLER SELECTION (Pitch)*2
All propellers are the 3-blade type
7"-12"
  1. Dry weight: not including propeller and engine oil
  2. Please inquire at your local dealer for details of the propeller

The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
