TECHNOLOGY

Leading the industry with award-winning technology and designs,
Suzuki outboards provide features and benefits that make boating more enjoyable.

OFFSET DRIVESHAFT OFFSET DRIVESHAFT DF70A AND UP

EXPLANATION :

The engine powerhead is positioned closer to the front, moving the outboard’s center of gravity forward.

ADVANTAGE :

  • Less vibration
  • More compact
  • Stable steering performance
Diagram of OFFSET DRIVESHAFT

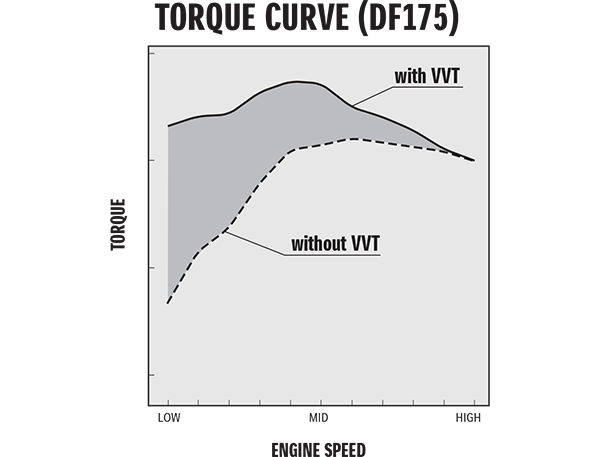

VARIABLE VALVE TIMING VVT (VARIABLE VALVE TIMING) DF150AP, DF175, DF175AP, DF200A, DF200AP, DF250, DF250AP, DF300AP, DF350A

EXPLANATION :

The Variable Valve Timing is used to control the open and close timing on the intake valve depending on the engine operation.

ADVANTAGE :

  • Offers smooth, powerful torque.
  • Provides tremendous acceleration during operation for all speed ranges.
Diagram of VVT (VARIABLE VALVE TIMING)

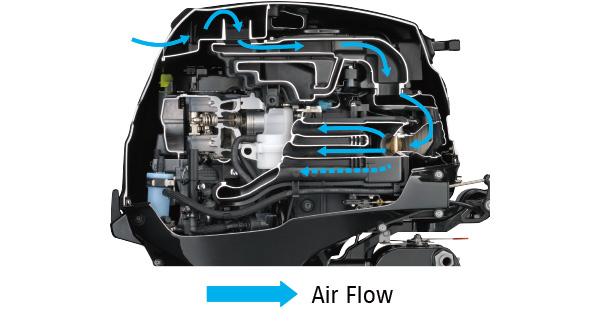

DIRECT AIR INTAKE DIRECT AIR INTAKE DF25/30A, DF350A

EXPLANATION :

Designing a direct airflow path from the intake port to the cylinder suppresses any increase in the intake temperature and improves combustion efficiency.

ADVANTAGE :

  • Delivers higher power output from a small displacement with improved combustion efficiency.
Diagram of DIRECT AIR INTAKE

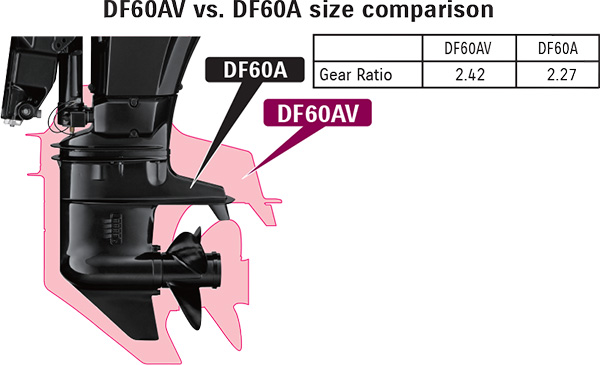

HIGH ENERGY ROTATION HIGH ENERGY ROTATION DF60AV, DF50AV

EXPLANATION :

These outboards are equipped with gears designed with a 2.42 gear ratio, which is larger than the standard model, in their lower units.
When combined with a large 14-inch (36cm) propeller, the powerful system can deliver an explosive forward thrust.

ADVANTAGE :

  • Powerful navigation and precise maneuvering even with big loads.
  • Tremendous power to turn large diameter propellers, offering quick acceleration.
Diagram of HIGH ENERGY ROTATION

MULTI-STAGE INDUCTION MULTI-STAGE INDUCTION DF150, DF150AP, DF175, DF175AP, DF200A, DF200AP, DF225, DF250

EXPLANATION :

Manifold pipes are switched between short and long ones during low speed and high speed operation to ensure the right volume of air enters the engine.

ADVANTAGE :

  • Increases output during high speed operation with greater volume of air input.
  • Increases combustion efficiency and maximizes torque by increasing the density in the air intake during low speed operation.

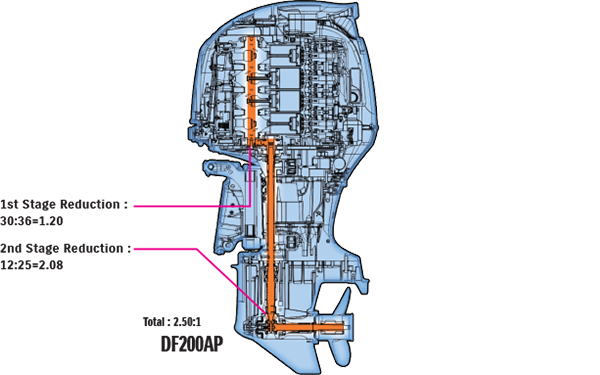

GEAR RATIO 2-STAGE GEAR REDUCTION DF70A AND UP

EXPLANATION :

This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft, and a second stage reduction inside the gear case. This design makes a larger gear ratio possible, allowing it to turn a large diameter propeller.

ADVANTAGE :

  • High propulsive efficiency with large diameter propeller.
  • Powerful navigation, maintaining propeller rotation even with a larger load.
  • Tremendous power to turn large diameter propellers, offering quick acceleration.
MODEL DF70A/
80A/90A		 DF100A/
115A/140A		 DF150(AP)/
175(AP)/
200A(AP)		 DF200/
225/250		 DF250AP/
300AP		 DF350A
GEAR
RATIO		 2.59:1 2.59:1 2.50:1 2.29:1 2.08:1 2.29:1

LEAN BURN LEAN BURN DF9.9B AND UP (NOT INCLUDING DF150, DF175, DF200, DF225, DF250)

EXPLANATION :

The Lean Burn Control System supplies the right fuel and air mixture depending on the navigation conditions.

ADVANTAGE :

  • Significant improvement in fuel economy in all speed ranges especially at cruising speed.
  • Fuel is saved and gasoline costs are cut thanks to improved fuel economy.

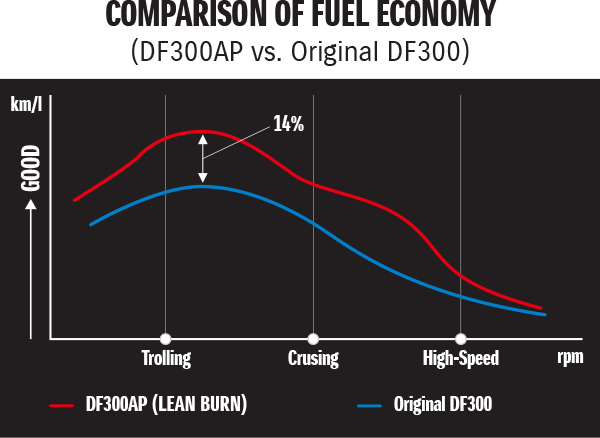

LEAN BURN
Diagram of LEAN BURN
Uses 14% less fuel compared to the original DF300, mainly in the cruising range where the engine is used a majority of the time. Data used in this graph was obtained through in-house testing under uniformed conditions. Results will vary depending on operating conditions(boat design, size, weight, weather, etc).

BATTERY-LESS FUEL INJECTION BATTERY-LESS ELECTRONIC FUEL INJECTION DF9.9B, DF15A, DF20A, DF25A, DF30A

EXPLANATION :

Parts used in the larger models have been redesigned into a more compact design and mounted onto smaller size models.

ADVANTAGE :

  • Quick and easy start.
  • Cleaner and economic fuel consumption.
  • Higher performance in almost all operating ranges.

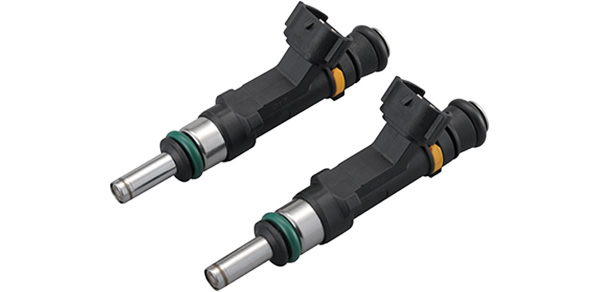

DUAL INJECTOR DUAL INJECTOR DF350A

EXPLANATION :

The dual injector delivers just the right amount of fuel at the right time into each cylinder.

ADVANTAGE :

  • Contributes to higher output and better fuel efficiency.
Picture of DUAL INJECTOR

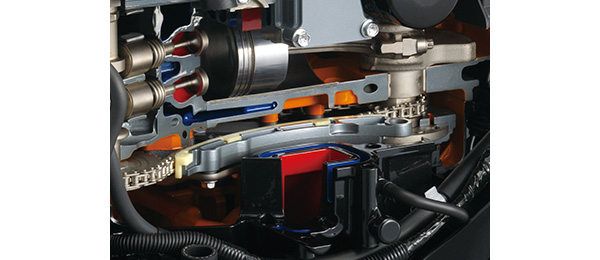

SELF-ADJUSTING TIMING CHAIN SELF-ADJUSTING TIMING CHAIN DF40A AND UP

EXPLANATION :

The timing chain runs in an oil-bath so it never needs lubricating, and is equipped with an automatic hydraulic tensioner so it remains properly adjusted at all times.

ADVANTAGE :

  • More durability compared to belt types of same class.
  • Maintenance-free.
Picture of SELF-ADJUSTING TIMING CHAIN

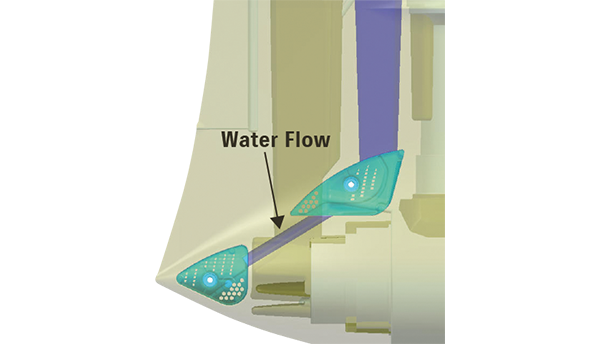

TWO-WAY WATER INLET TWO-WAY WATER INLET DF300AP, 250AP

EXPLANATION :

The engine’s cooling system relies on water supplied through low water inlets located on the lower unit, featuring two water inlets where usually there is only one.

ADVANTAGE :

  • Increases the water flow, providing better cooling performance.
  • Positioning an inlet at the front of the gear case delivers a greater water supply not only at high speeds but also during shallow drive.
Diagram of TWO-WAY WATER INLET

SUZUKI ANTI-CORROSION FINISH ALL MODELS

EXPLANATION :

Special protection is applied to the aluminum surface using high strength bonding to protect the aluminum made exterior parts.

ADVANTAGE :

  • Protection against corrosion helps increasethe overall engine durability.

WATER DETECTING SYSTEM SUZUKI WATER DETECTING SYSTEM DF100A AND UP

EXPLANATION :

It helps protect the engine from water in the fuel using a water detecting fuel filter to alert the operator with both visual and audio warnings when water is present in the fuel.

ADVANTAGE :

  • Can avoid water in fuel, which can lead to issues like poor combustion, lower power output and corrosion.

DUAL LOUVER SUZUKI DUAL LOUVER SYSTEM DF350A

EXPLANATION :

The new DF350A is equipped with a dogleg shaped dual louver at the air intake to completely remove water from the air taken into the cowl.

ADVANTAGE :

  • Allows a direct intake system, contributing to higher engine output.

DUAL PROP SUZUKI DUAL PROP SYSTEM DF350A

EXPLANATION :

The Suzuki Dual Prop System spins two propellers rotating in opposite directions on a single engine.

ADVANTAGE :

  • More stability when driving straight by eliminating the lateral forces associated with a single propeller.
  • Engine power is transferred to the water more efficiently.
  • Powerful backing and breaking force.
  • Less water resistance due to small size of gear case.
  • Good water gripping performance and quick startup acceleration.

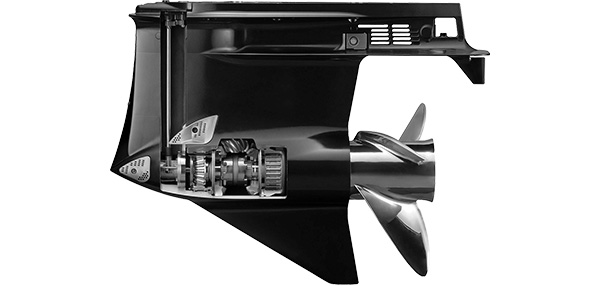

SELECTIVE ROTATION SUZUKI SELECTIVE ROTATION 150AP, DF175AP, DF200AP, DF250AP, DF300AP

EXPLANATION :

Function for selecting regular or counter rotation on one outboard with an optional connector.

ADVANTAGE :

  • Either regular or counter rotation can be used on the same outboard.
Picture of SUZUKI SELECTIVE ROTATION

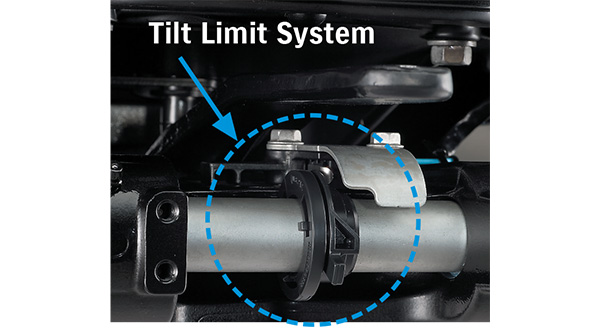

TILT LIMIT TILT LIMIT SYSTEM DF50AV, DF60A AND UP

EXPLANATION :

A Tilt Limit System that prevents the outboard from tilting beyond a certain angle.

ADVANTAGE :

  • Prevents damage to the boat or outboard due to excessive outboard tilting.
Diagram of TILT LIMIT SYSTEM

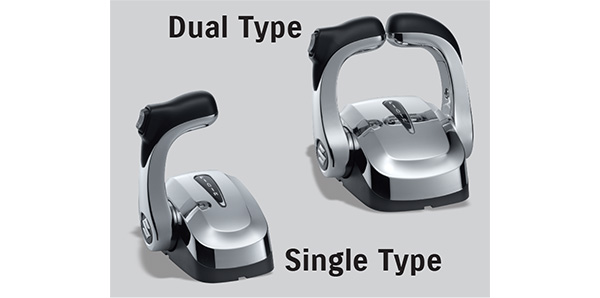

PRECISION CONTROL SUZUKI PRECISION CONTROL (ELECTRONIC THROTTLE AND SHIFT SYSTEMS) DF150AP, DF175AP, DF200AP, DF250AP, DF300AP, DF350A

EXPLANATION :

Operation from the remote control is delivered to outboard via an electric signal and not by the traditional mechanical control cables.

ADVANTAGE :

  • Less friction and resistance compared to mechanical type that uses actual control cables.
  • Quick and reliable operation.
  • Lean Burn integration offers improved fuel economy for a wide range of speed.
Picture of SUZUKI PRECISION CONTROL(ELECTRONIC THROTTLE AND SHIFT SYSTEMS)

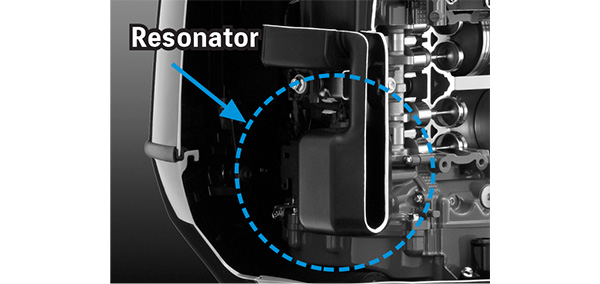

QUIET OPERATION QUIET OPERATION DF150AP, DF175AP, DF200A, DF200AP, DF350A

EXPLANATION :

Intake noise is suppressed with a resonator, which makes the noise from the outboard quieter.

ADVANTAGE :

  • Quiet operation.
  • Less noise, making boating more pleasant.
Diagram of QUIET OPERATION

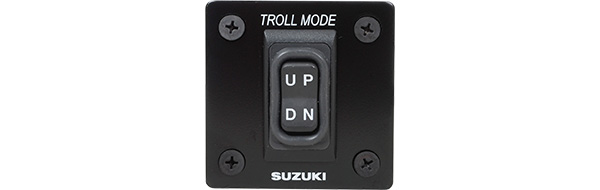

TROLL MODE SUZUKI TROLL MODE SYSTEM (OPTIONAL EQUIPMENT) DF40A AND UP (NOT INCLUDING DF150/175/225/250)

EXPLANATION :

A system that keeps the boat running at a certain speed in low revs. Equipped in all tiller handle models DF40A and up.

ADVANTAGE :

  • Boat can keep running at a certain speed in low revs without having to operate the throttle on the boat.
Picture of SUZUKI TROLL MODE SYSTEM(OPTIONAL EQUIPMENT)

KEYLESS START SYSTEM KEYLESS START SYSTEM DF70A AND ABOVE (NOT INCLUDING DF150/175/200/225/250)

EXPLANATION :

System that allows you to start the engine by have the key-fob nearby.

ADVANTAGE :

  • Helps deter theft more than a normal key system.
  • Key does not need to be inserted.

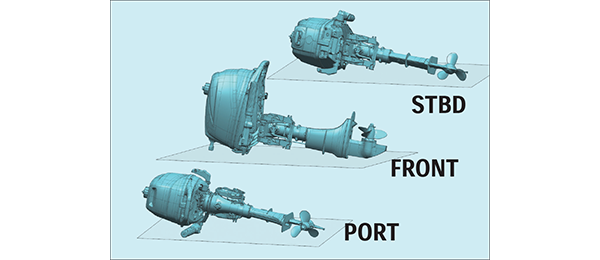

THREE-WAY STORAGE THREE-WAY STORAGE DF4/5/6A

EXPLANATION :

The design allows the outboard to be removed from the boat and placed on any of its 3 sides for storage.

ADVANTAGE :

  • Can be stored anywhere.
  • No need to worry about the loading space or method.
Diagram of THREE-WAY STORAGE

SUZUKI LEADS IN AWARD-WINNING INNOVATION

The Innovation Awards (recognising technological innovation) granted each year by the NMMA (National Marine Manufacturers Association) are considered among the highest honours in marine technology. Of the new marine industry products in that year, they are awarded to “a product that shows technical leadership, is practical and cost-effective, and is truly beneficial to the consumer.” Starting with the DT200 Exanté in 1987 and extending to the DF350A in 2017, Suzuki outboard motors have received this Innovation Award a total of nine times. Eight of these awards have been for four stroke outboard motors, which is the largest number of awards in the engine category of this industry.

Awarded Prizes 1987: DT200 Exanté / 1997: DF70 & DF60 / 1998: DF50 & DF40 / 2003: DF250 / 2006: DF300 / 2011: DF50A & DF40A / 2012: DF300AP / 2014: DF30A & DF25A / 2017: DF350A
AWARDED PRIZES
1987: DT200 Exanté / 1997: DF70 & DF60 / 1998: DF50 & DF40 / 2003: DF250 / 2006: DF300 / 2011: DF50A & DF40A / 2012: DF300AP / 2014: DF30A & DF25A / 2017: DF350A
